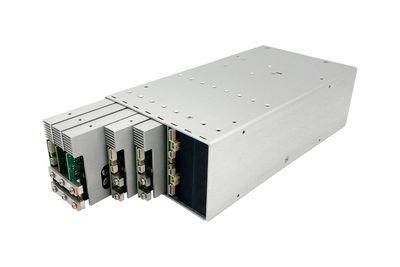

PowerPAC4K | AC-DC power supply, up to 4000W, 1-16 outputs
Description: Configurable AC-DC power supply
Type: AC-DC
Input: 85-265Vac, 47-63Hz or 85-135Vac, 360-440Hz (consult for DC input)
Output: 1 to 16 outputs
Output voltages: From 3V3 to 48Vdc
Power: 4000W max.
Particularity: modular, high density
Standards: Built to meet EN61000-3-2, EN55022B or MIL-STD461E CE102, MIL-STD810E
Application: Ideal for numerous voltage and high power density
Dimensions: 86 x 153.5 x 305mm
Markets: Industry, Defence, Renewable Energy
PST14X | DC-DC converter, 320W, 1 output
Description : Conduction cooled
Type : DC-DC
Input : 9-50, 18-36, 16-50 Vdc IN
Output : 1
Output voltages : From 3,3V to 48Vdc
Power : 80, 160, 320W
Particularity : Very low profile 25mm
Standards : Built to meet EN55022 or MIL-STD461E CE102, MIL STD-1275A, MIL-STD 810 (-M option)
Application : Ideal for limited space environment
Dimensions : 160 x 50 x 25mm
Markets : Industry, Defence, Avionic, Renewable Energy
PST14A | DC-DC converter, 500W, 1 output
Description: Conduction cooled
Input type: DC-DC
Inputs: 12, 24, 48, 72, 110 Vdc IN
Outputs: 1
Output voltage: From 3,3V to 48Vdc
Power: 500W
Particularity: Very low profile
Approvals: Built to meet EN55022, MIL-STD461E CE102, MIL STD-704, MIL-STD 810 see options and MIL-STD1275 (12 or 24Vdc only)
Application: Parallel or series operation up to several KWs
Dimensions: 225 x 61 x 35mm
Markets: Industrie, Defence, Avionic, New Energies
PST14B | DC-DC converter, 250W, 1 output
Description : Conduction cooled
Input type : DC-DC
Inputs : 12, 24, 48, 72, 110 Vdc IN
Outputs : 1
Output voltage : From 3,3V to 48Vdc
Power : 250W
Particularity : Very low profile
Approvals : Built to meet EN55022, MIL-STD461E CE102, MIL STD-704, MIL-STD 810 see options and MIL-STD1275 (12 or 24Vdc only)
Application : Parallel or series operation up to several KWs
Dimensions : 140 x 61 x 35mm
Markets : Industrie, Defence, Avionic, New Energies
PST14C | DC-DC converter, 150W, 1 output
Description: Conduction cooled
Input type: DC-DC
Inputs: 12, 24, 48, 72, 110 Vdc IN
Outputs: 1
Output voltage: From 3,3V to 48Vdc
Power: 150W
Particularity: Very low profile
Approvals: Built to meet EN55022, MIL-STD461E CE102, MIL STD-704, MIL-STD 810 see options
Application: Series operation
Dimensions: 100 x 61 x 35mm
Markets: Industrie, Defence, Avionic, New Energies
PST21A | Power supply, 1200W, 1-6 outputs
Description : Conduction cooled
Input type : AC-DC
Inputs : 85-265 Vac IN
Outputs : 1-6
Output voltage : From 3,3V to 48Vdc
Power : 1200W
Particularity : Very low profile
Approvals : Built to meet EN55022, MILSTD461E CE102, MIL STD-704, MIL-STD 810 see option
Application : For severe environment
Dimensions : 255 x 127 x 40mm
Markets : Industrie, Defence, Avionic
PST21B | AC-DC power supply, 600W, 1-3 outputs
Description : Conduction cooled
Input type : AC-DC
Inputs : 85-265 Vac IN
Outputs : 1-3
Output voltage : From 3,3V to 48Vdc
Power : 600W
Particularity : Very low profile
Approvals : Built to meet EN55022, MILSTD461E CE102, MIL STD-704, MIL-STD 810 see option
Application : For severe environment
Dimensions : 200 x 127 x 40mm
Markets : Industrie, Defence, Avionic
PST21C | AC-DC Power supply, 300W, 1-2 outputs
Description : Conduction cooled
Input type : AC-DC
Inputs : 85-265 Vac IN
Outputs : 1-2
Output voltage : From 3,3V to 48Vdc
Power : 300W
Particularity : Very low profile
Approvals : Built to meet EN55022, MILSTD461E CE102, MIL STD-704, MIL-STD 810 see option
Application : For severe environment Dimensions : 200 x 80 x 40mm
Markets : Industrie, Defence, Avionic
PST21D | AC-DC Power supply 150W, 1 output
Description : Conduction cooled
Input type : AC-DC
Inputs : 85-265 Vac IN
Outputs : 1
Output voltage : From 3,3V to 48Vdc
Power : 150W
Particularity : Very low profile
Approvals : Built to meet EN55022, MILSTD461E CE102, MIL STD-704, MIL-STD 810 see option
Application : For severe environment Dimensions : 165 x 61 x 35mm
Markets : Industrie, Defence, Avionic
PST22 | DC-DC converter, 450W, 1-3 outputs
Description: Eurocard for railways
Input type: DC-DC
Inputs: 12,24,48,72,110Vdc IN
Outputs: 1-3
Output voltage : From 2V5 to 48Vdc
Power : 450W
Particularity : Option Active N+1, -40°C, conformal coating, low profile 4TE, energy storage
Approvals : Built to meet EN50155, EN60950
Dimensions : 3U x 8TE x 160 mm
Markets : Industrie, Transport
PST26 | AC-DC and DC-DC, 300W, 1-2 outputs
Input type: AC-DC & DC-DC
Inputs: 90-264Vac or 100-350Vdc IN
Outputs: 1-2
Output voltage: From 3V3 to 48Vdc
Power: 300W
Particularity: PFC EN61000-3-2
Approvals: Built to meet EN50155, EN61000-4-5, EN61000-4-2, EN61000-4-4, MILSTD810E
Dimensions: 3U x 8TE x 160 mm
Markets: Industrial, Defence
PST27 DC-DC converter, 300W, 1-2 outputs
Description: Conduction cooled
Input type: DC-DC
Inputs: 12, 24, 48 Vdc IN
Outputs: 1-2
Output voltage: From 3,3V to 48Vdc
Power: 300W
Particularity: Very low profile(21mm)
Approvals: Built to meet EN55022, MIL-STD461E CE102, MIL STD-704, MIL-STD 810 see options and MIL-STD1275 (12 or 24Vdc only)
Dimensions: 80 x 190 x 21mm
Markets: Industrie, Defence, Avionic, New Energies
PST27X | DC-DC converter, 320W, 1 output
Type: DC-DC
Input: 9-50Vdc, 18-36Vdc, 16-50Vdc
Output: 1
Output voltages: From 3V3 to 48Vdc
Power: 320W
Particularity: conduction cooled , -40°C to 90°C, conformal coating
Standards: Built to meet MIL-STD 461,MIL-STD 810, MIL-STD 704 and MIL-STD 1275
Dimensions: 80 x 190 x 21mm
Markets: Industry, Transport, Defence, Avionic
CPCI | AC Power supply, compakt PCI 300W, 4 outputs
Description : Compact PCI 300W
Input type : AC-DC
Inputs : 85-265 Vac or 100-350Vdc IN
Outputs : 4
Output voltage : 3V3/50A, 5V/40A, 12V/1A, -12V/1A or 3V3/50A, 5V/40A, 12V/5A, -12V/1A
Power : 300W
Particularity : Fit the PICMG 2.11 standard
Approvals : Built to meet EN55022A, MILSTD461E, EN 61000-4-5, MIL-STD 810F
Application : For severe environment
Dimensions : 3U x 8TE x 160mm
Markets : Industrie, Defence, Avionic
